Last week saw the end of our major construction. At this point, we are down to missing light fixtures and towel rails and other details of that ilk.
Since the scaffolding is now down, our weekends include fun tasks like mortar removal from the outside of huge expanses of glass. However, that's not what I wanted to remember. Instead, I wanted to show what goes into a new roof.
|
We had our very own road closure sign |
The steps are (loosely) as follow:
1. Install scaffolding. In our case, we are on a road that was too narrow to permit normal scaffolding. This meant that they had to close the road for a few days, using that time to install "flying" scaffolding, which has to be bolted into your wall.
|
Although it seems ridiculously small, this alley gets a fair amount of traffic |
2. Remove existing tiles
3. Remove existing gutters and downspouts
4. Scrape and inspect roof slab
5. Create a mortar barrier at the roof's edge to hold insulation in place
6. Install rigid foam insulation
7. Cover insulation with bituminous membrane
|
Some of the Erector set pieces |
8. Re-install tiles (using the old tiles as possible; any new tiles are put underneath, so they don't show)
9. Mortar tiles at top and bottom to provide stability
10. Install new (copper) gutters and downspouts
11. Remove scaffolding, including repair of bolt holes. This also requires 2 days' worth of road closure.
|
Taking down the scaffolding looks very similar to putting it up, unsurprisingly |
|

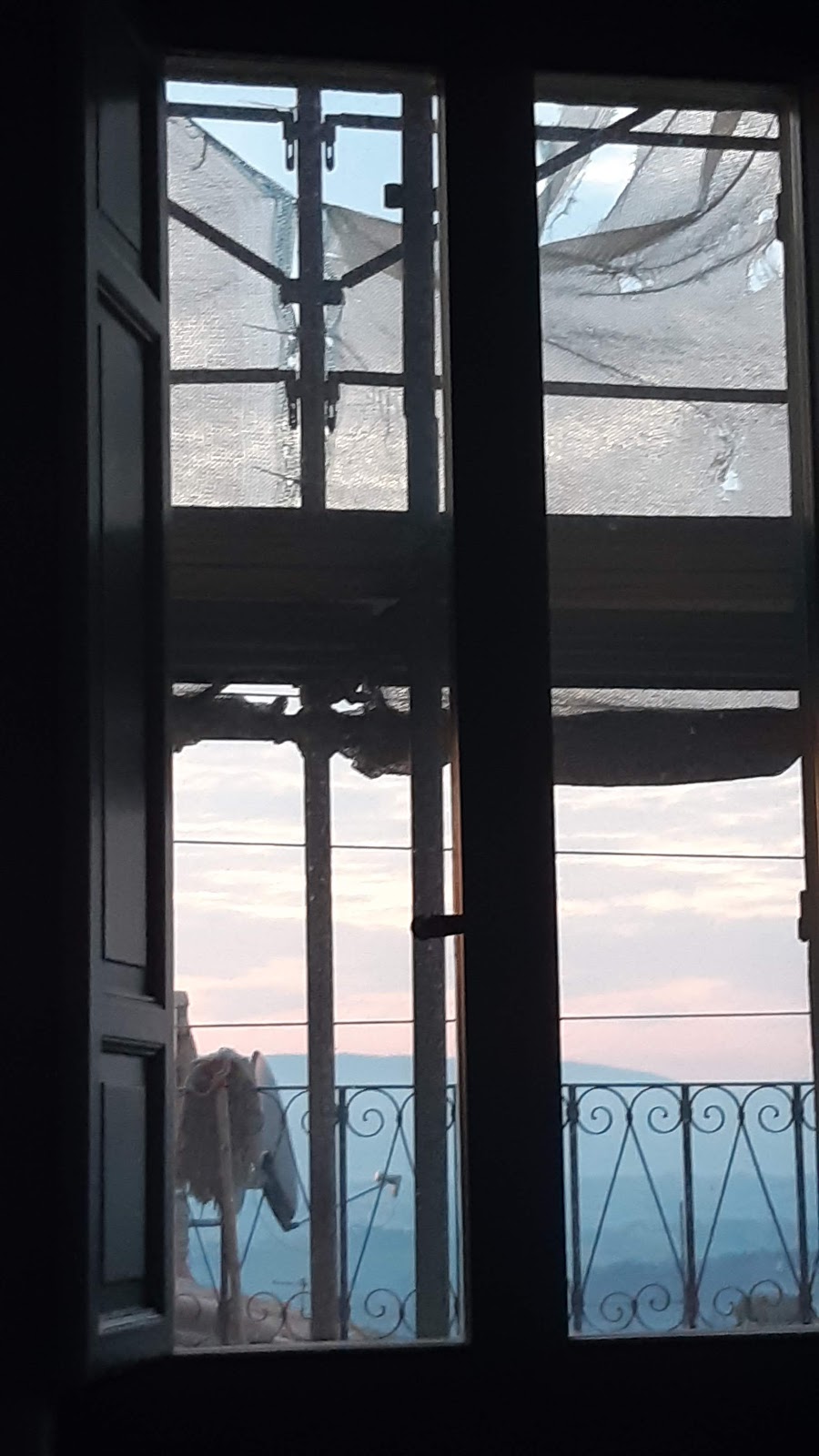

View from our bedroom window the first morning of scaffolding |
If needed, chimney stacks and other penetrations can also be rebuilt. Yes, we had that pleasure, as well.
|
We provided roof access at the front of the house, since we had the cortile in which to park trucks and unload supplies |
|
This is the final step for workers to access the site |
|
Building up |
|
The scaffolding is much higher and larger than the photo can convey
|
|
One of the many stacks of roof tiles |
|
Remo and Bogdan at work on the chimney |
In the firm belief that a picture is worth a thousand words, I provide these photos (taken over a period of months, due to quarantining!)
|
Tile removal and chimney reconstruction. Remo was our expert in this photo. |
|
Gutter mounts installed at roof edge |
|
Copper gutter mounts |
|
Patrick installing insulation
|
|
Bogdan installing the membrane
|
|
Almost at the peak! |
|
Working the other side |
|
Scaffolding down, new copper gutters! |
